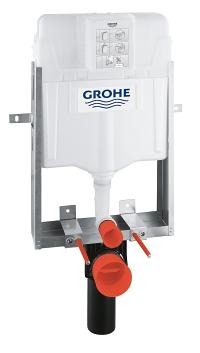

Uniset Element for WC

Uniset

Element for WC

with flushing cistern GD 2, 6 - 9 l

778 x 440 x 116 mm

for single installation

2 WC fixing bolts

distance of fixing bolts 180/230 mm

fixing device for ceramic

outlet bend Ø 90 mm

reducer Ø 90/110 mm

inlet and outlet connecting set

flushing cistern GD 2, 6 - 9 l, containing following features:

adjustment ex factory 6 l and 3 l

pneumatic discharge valve offering 3 modes of

operation: dual flush or start/stop or single flush

water supply from left/right/back or top

low noise (group I acc. to German Noise Specification)

cistern insulated against condensation

½" angle valve with push fit flexible hose union

no tools required for the installation of the inspection shaft

including protection during construction phase

for vertical or horizontal use
